High energy proton sources manufactured by STAIB Instruments are compact, light weight, high performance instruments.

Key features

  • Ion generation: Duoplasmatron
  • Ion optical arrangement: Extractor, focus, mass separator, and acceleration optics
  • Mass separation: Magnetic sector 90 degrees
  • Measures of the source cage: 950 mm (length) x 500 mm (width) x 800 mm (height)
  • Connecting flange: CF150 150 mm (ID), 200 mm (OD)
  • Energy range: 5 keV to 50 keV (continuously controllable)
  • Differential pumping: 2 stages
  • Optimum working distance (WD): 1500 mm
  • Beam diameter at 1500 mm WD: 100 mm
  • Beam homogeneity: ≈ 50%
  • Gas inlet valve

Options

Computer control (optional)
Not all parameters can be reached simultaneously. Above specifications may change without notice.

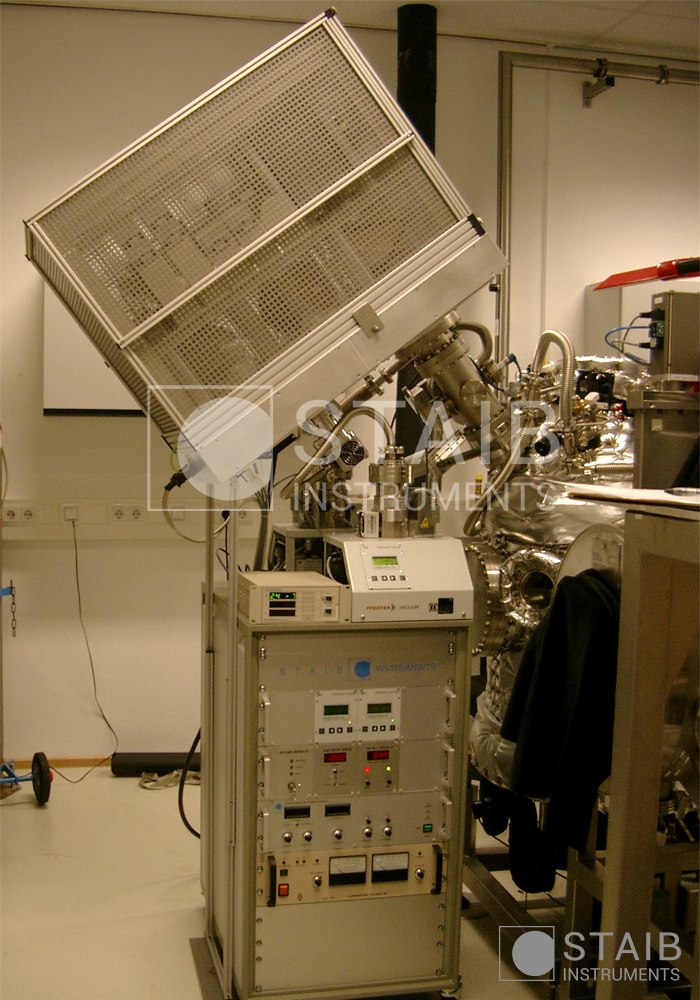

Pictures / diagrams for reference only.
